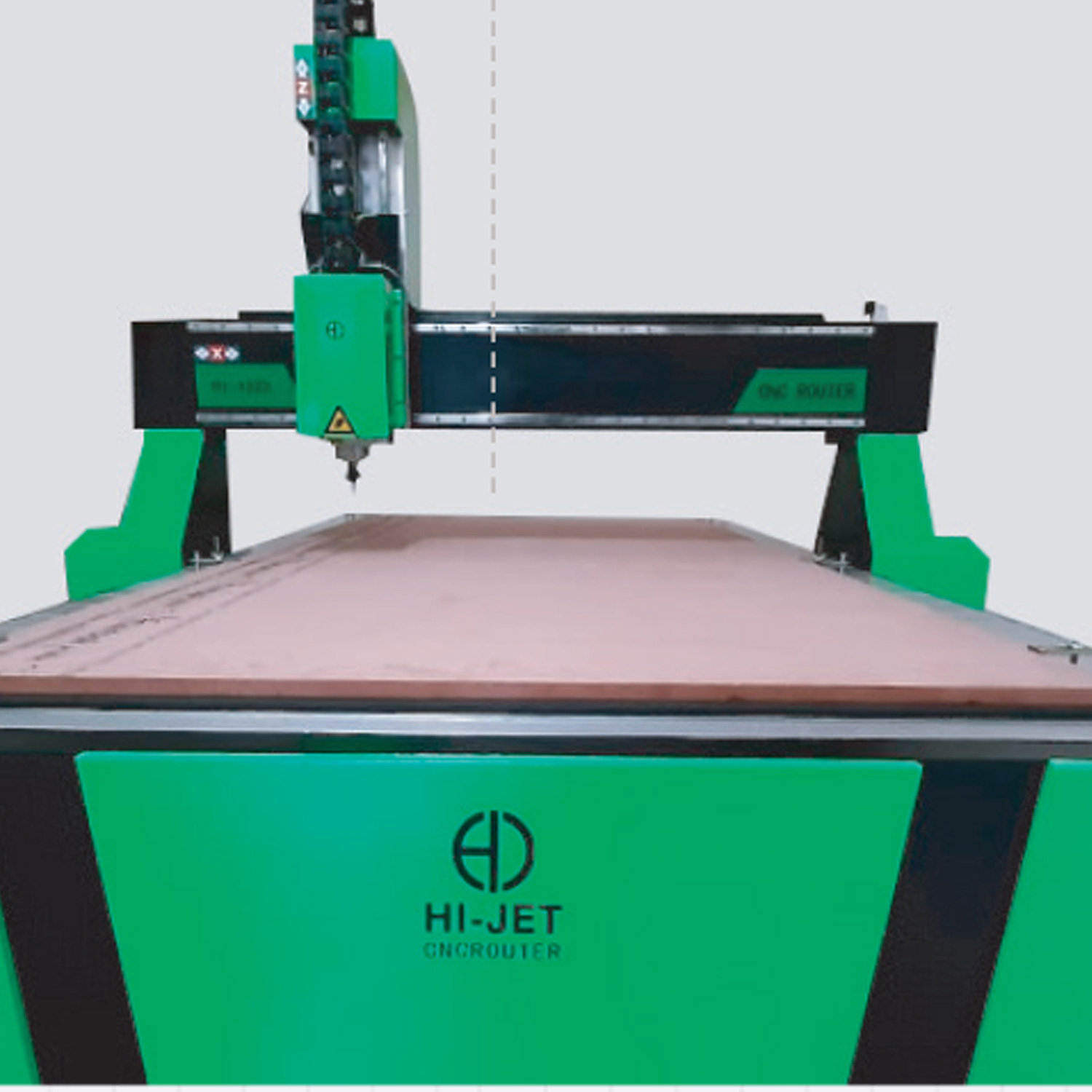

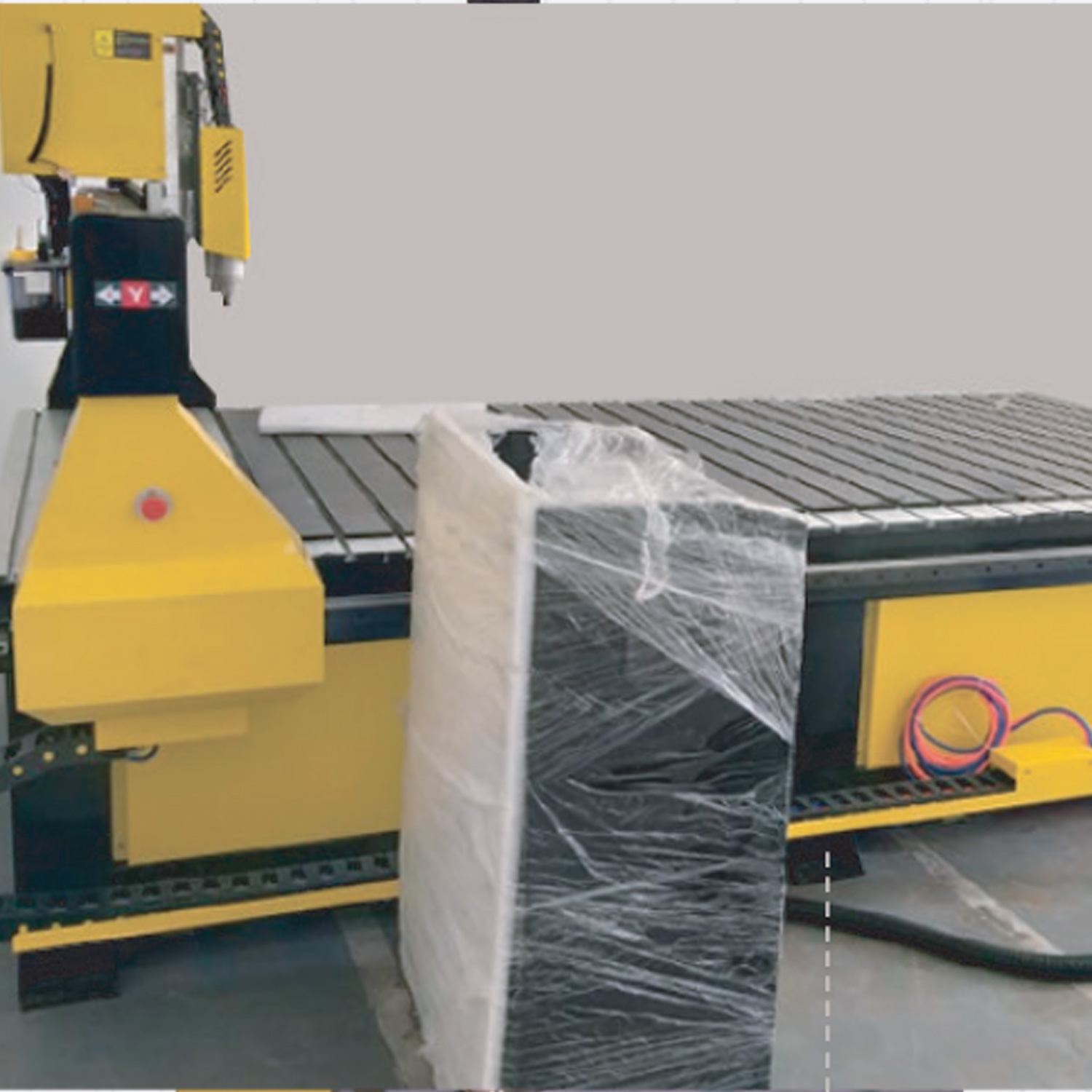

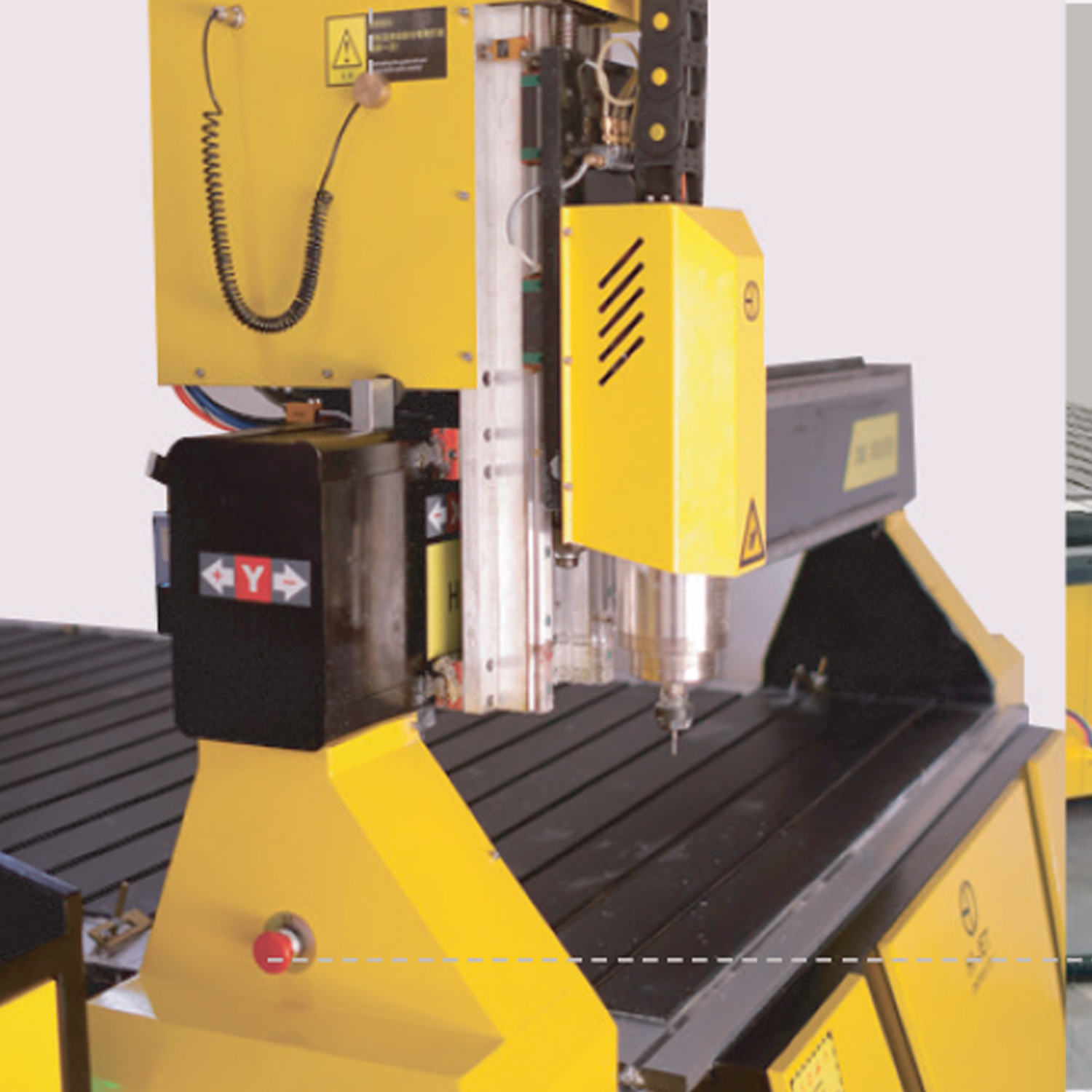

1, Y-axis adopts double motors to ensures stable operation
2, Lathe bed is castwhollyand firmly and willnot deform
3, Highly accurate Rack Rail travel method with high speed
4, The vaccum cleaning system offers a clean working
environment and better quality
5, USB ensures high speed and efficiency
6, The unique calculating systemrealizes speedy,accurate,curvy operation
7, Many Options are available such as Vacuum bed, Italian Spindle,rotary, Waterbed Etc
| PARAMETER | AIR COOLER | WATER COOLER |
|---|---|---|
| Working Area (X*Y*Z) | 8 x 4 Feet | 8 x 4 Feet |
| Max Engraving Speed | 20m/min | 20m/min |
| Spindle Power | 3.5 KW | 3.2 KW |
| Spindle Speed | 18000 rpm | 24000 rpm |
| Controller | DSP (11A Ver.) / NC Studio | – |
| Motors / Drivers | YAKO 2608 / 2811 / Servo | – |

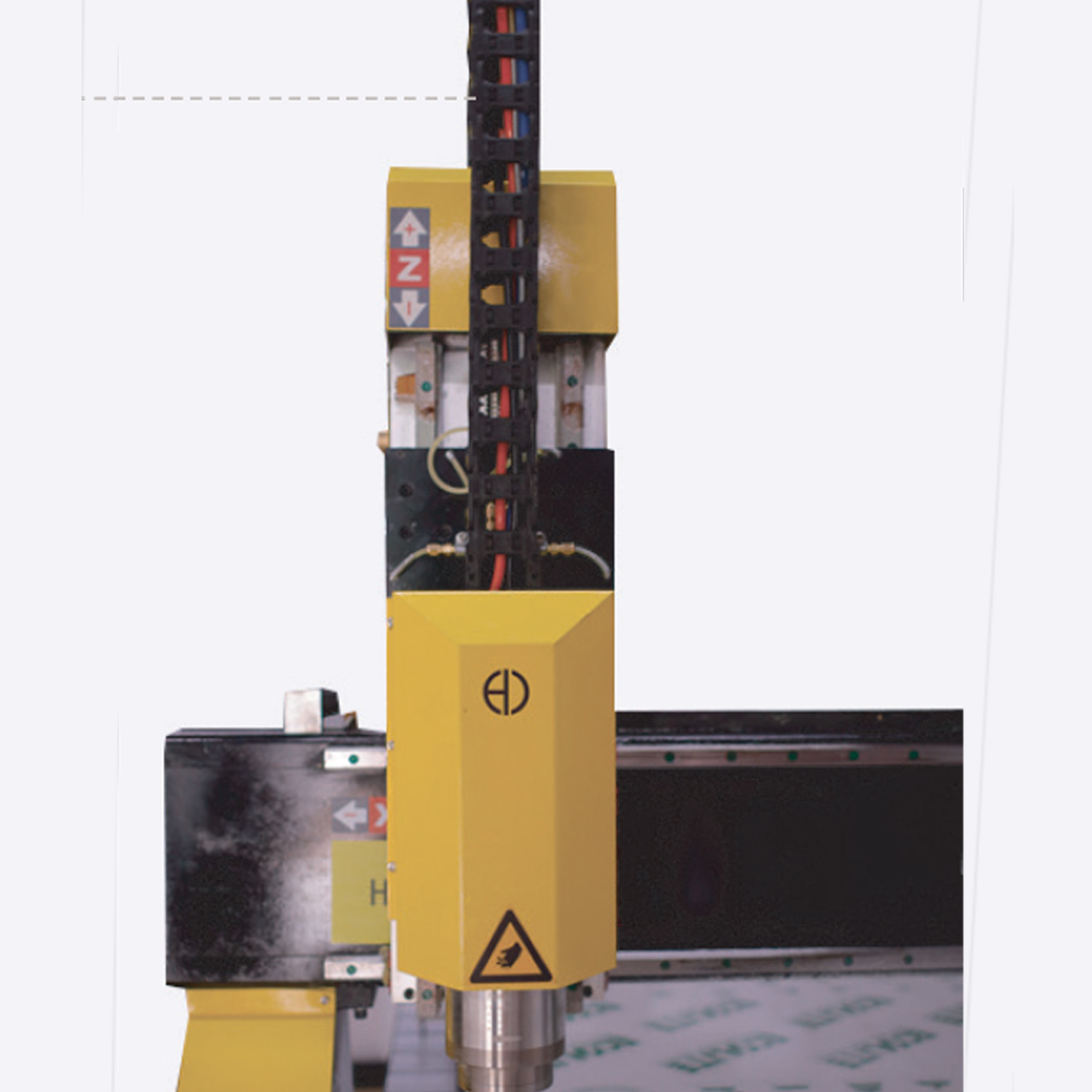

| Z Axis | German Technology Ball Screw | – |
| Working Speed | 0-15,000 mm/min | – |
| Transmission | X,Y transmitted by linear square rail | – |
| Working Voltage | AC 220 V 50 HZ 1Ph, 4HP | – |
| Dimension (L×W×H) | 3050 x 1500 x 750 MM | – |
| Spindle Type | Air Cool | Water Cool |
| Weight | 1300 KG | 1300 KG |
| Z Gantry H Clearance | 300mm | 300mm |
| Software | Artcam, Corel | Artcam, Corel |
